Specifications:
* Pre-galvanized steel
Types
|
|
dimensions (mm)
|
Size (mm)
|
length (mm)
|
|
Main Ceiling Channel Big T
|
38x24
|
0.5
|
3650
|
|
Ceiling Channel small T
|
26x24
|
0.5
|
1200
|
|
|
26x24
|
0.5
|
600
|
|
Perimeter angle white
|
20
|
20
|
3000
|

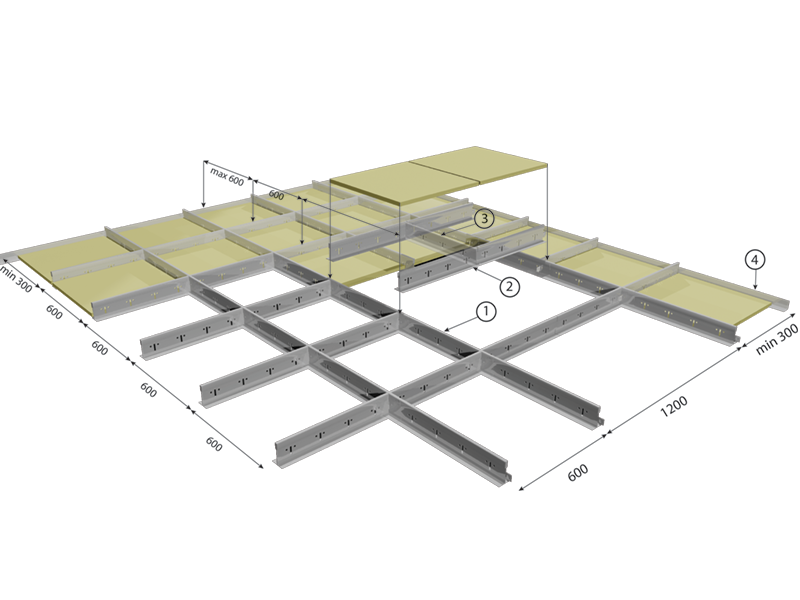

Suspended Ceiling System /Requirements
|
|
Approx.
requirement
2 per 100m (LM)
|
Application
|
|
|
Main Ceiling Channel Big T
|
135
|
Main support for
furring channels
|
|
Ceiling Channel small T 26x24 x1200 mm
|
135
|
Support section where plaster board
|
|
Ceiling Channel small T 26x24 x600 mm
|
22.5
|
|
Perimeter angle white
|
25
|
Fixed round the perimeter to receive ends of furring channels and outer edges of plaster board
|
Osma Board Main T Bundle of 25
Osma Board angle Bundle of 25
Osma Board Ceiling Channel small T 26x24 x1200 mm 75 piece per box
Osma Board Ceiling Channel small T 26x24 x600 mm 75 piece per box
